mitered half laps

Team up a half lap with a basic miter, and you instantly create a handsome joint that also provides plenty of strength.

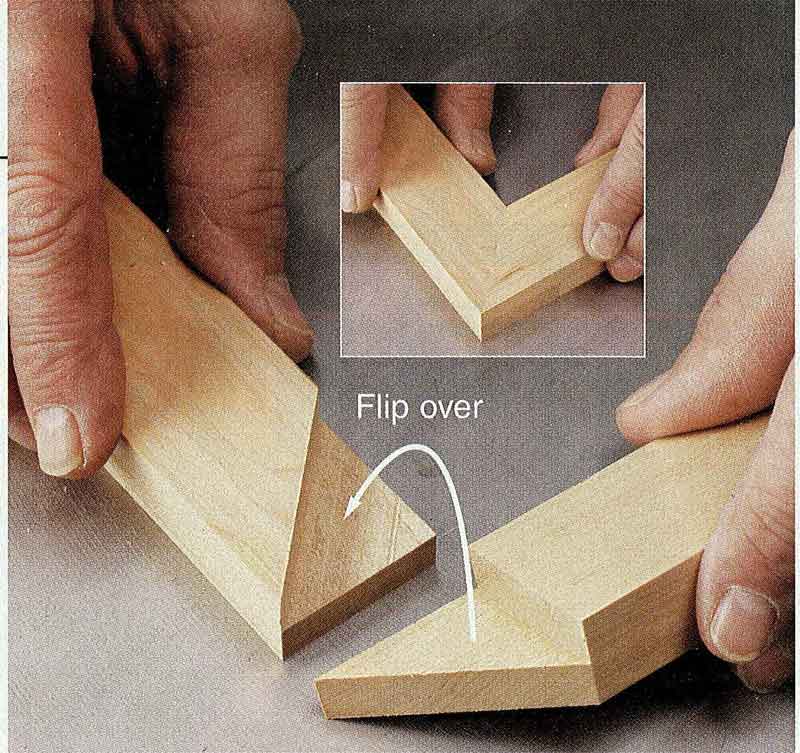

A mitered half-lap joint consists of two parts like the ones shown here. Just flip the piece at right, and the mating miters form the completed joint, inset. We placed the exposed end grain at the top and bottom of the frame.

Miters look great, but in many applications they need reinforcement from wood splines or metal fasteners for strength. But as you can see in the photos above, there's a better way to add beef to a miter: by combining it with a half lap. Why's that' Because of the joint's ample face-grain gluing surfaces.
To create this reliable joint, you'll need a tables aw equipped with a dado set that produces flat, smooth cuts. You'll also need a scrapwood stop that attaches to your rip fence, an accurate miter gauge equipped with an auxiliary fence, and a simple plastic guard that we'll tell you how to make.
To get started, use a straight piece of solid wood or plywood to make the stop for your tablesaw's rip fence. Cut the stop about 12" long, and narrower than the height of your rip fence. Clamp it to the rip fence with the front end slightly back from the dado blade.
Check your miter gauge for accuracy at both 45° settings, and then add an auxiliary miter-gauge fence that's narrower than the height of your rip fence. Make it more reliable by adding self-adhesive, 120-grit sandpaper to its face to keep the workpiece from slipping. Be sure to place the sandpaper away from the business end of the fence to prevent the abrasives from contacting the dado set and making it dull.
Some of the cuts you'll make tend to throw chips straight up in the air. That's why we put together a safety guard from scraps we had in the shop.
To make the guard, attach a piece of 1/8õ8õ16" acrylic to a 3/4x2x30" board with 1" panhead screws. The dimensions aren't critical; size your guard so that it extends past the dado set when you cut.


8 EASY STEPS TO MITERED HALF LAPS

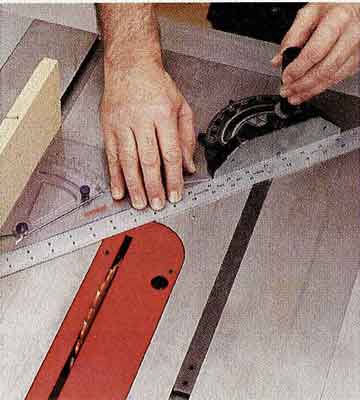

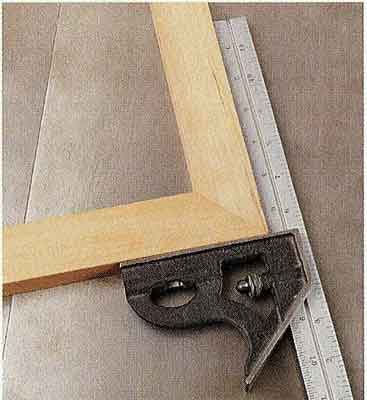

1 A tight miter joint begins with precise equipment. Make sure your tablesaw table sits square with the blade, using the method described on page 56. Then set your miter gauge as shown on page 58, or use this trick. Insert tight-fitting 3/4" scrap in the right miter-gauge slot, and place your miter gauge in the left slot. Slide an accurate 45° angle against the scrap, and place a steel rule against the miter gauge, left. Then line up the angle, the rule, and the miter gauge. To double-check the accuracy of your setup, cut miters on two pieces of scrap, hold them together at a right angle, and check them with a reliable square, right. They should fit with no gaps.



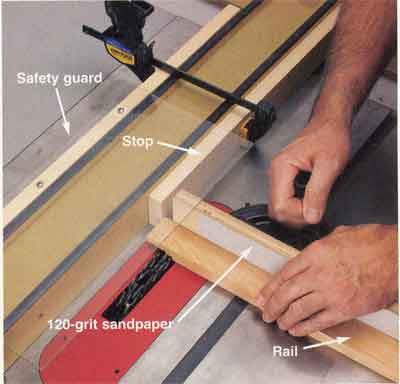

2 Install a full-width dado set, and raise it to cut exactly half the thickness of your workpiece. (If your dado set produces rough surfaces, see issue 150 for our dado set test.) Make test cuts on scrap pieces of the same thickness as your workpieces. Mate the two pieces, and use a rule or other straightedge to check for a flush fit, as shown. Cut your stiles and rails to finished length. 3 CIamp your safety guard and stop in place, as shown. Adjust the rip fence so that the distance from the stop to an outside tooth of your dado set equals the width of your workpiece. Set your miter gauge at 90°, and cut away the underside of each rail at each end. Make two or three passes, as necessary. For the final pass, butt the end of the rail against the stop.
4 Set your miter gauge at 45° as shown, and place a stile facedown against it. Align the leading corner with an outside tooth on the dado set. Adjust your rip fence so that the opposite corner of the stile contacts the stop. Lock the fence in place, and leave it there for the remaining cuts. Make the needed passes to form a mitered recess on the underside of the stile. 5 Place your rail on the tablesaw with its inside corner butted against the stop. Miter-cut this half lap with just one pass. The inside corner drops away as you complete the cut.

6 Now, swing your miter gauge to the opposite 45° setting, again using the procedures from Step 1. (Shop tip: Buy extra miter gauges so you can leave them set at 90° and both 45° settings.) Now, butt the inside corner of the stile against the stop, and cut each of the remaining two stile ends, as shown. 7 Complete the cuts for your frame by mitering the remaining two rail ends, as shown. Again, place the inside corner of the workpiece against the stop to line up each cut.

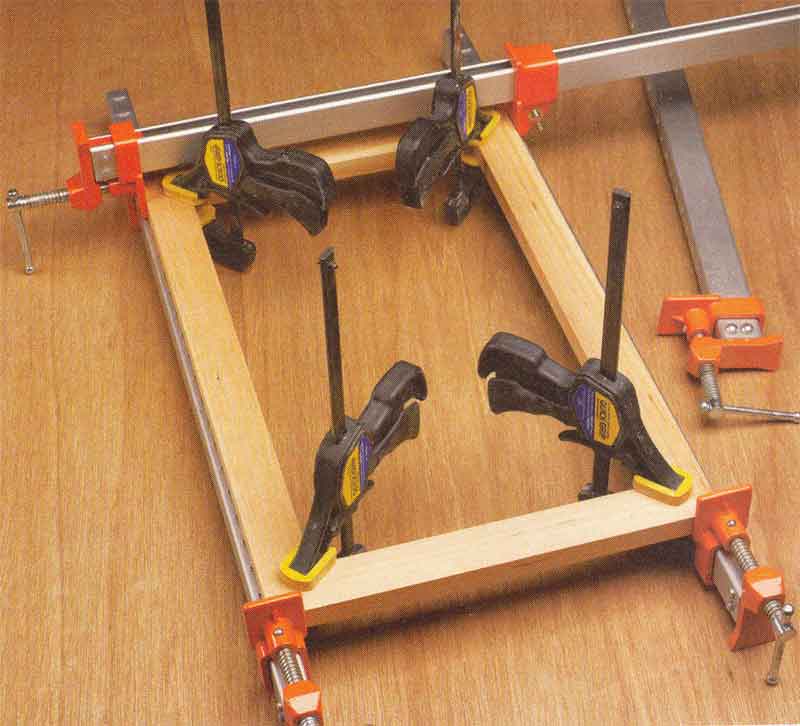

8 A type of glue with longer open time, such as Titebond Extend, comes in handy when you assemble mitered half-laps. Lay the frame on a pair of bar clamps, and make them snug. Now, add a small clamp vertically at each joint to apply face-to-face pressure. Finally, add two bar clamps on top of the frame and perpendicular to the first pair. (We've left one off for clarity.
